3 Axles Chemical Liquid Tank Semi Trailer HHT9405GHY manufacturer from China Hebei Hongtai Special Motortruck Co., Ltd.

Payment Terms:	L/C or T/T
Place of Origin:	Hebei, China (Mainland)

Product Detail

Model No.: HHT9405GHY

Production Capacity: 5000 sets per year

Delivery Date: 20 days

Capacity (Load): 21-30T

Size: 10700*2500*3800mm

Color: As customer's request

Means of Transport: SHIP

Packing: naked

Condition: New

Brand Name: Hongtai

Certification: ISO9001:2000 & CCC

1.Advanced design
2. High quality
3.Competitive price

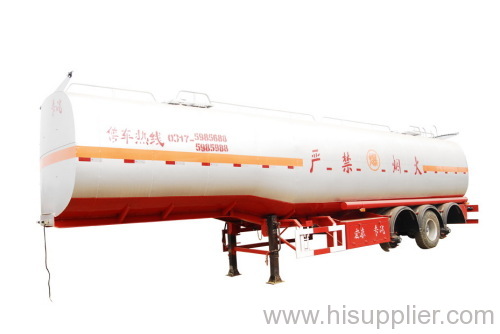

Product Name	Chemical Liquid Tank Semi Trailer
Model	HHT9405GHY
Brand Name	Hongtai
External Dimension(L×W×H) (MM)	1070025003800
Total Weight(KG)	39500
Rated Payload(KG)	30000
Complete Vehicle Kerb Mass(KG)	9500
Number of Axles(PC)	3
Axle Base(MM)	5300+1310+1310
Front/Rear Overhang(MM)	-/1480
Approach/Departure Angle(°)	-/18
Rated Loading Weight of The Saddle(KG)	16100
No. of Leaf Spring(PC)	-/8/8/8
Rear Wheel Track(MM)	1840/1840/1840
No. of Tire(PC)	12
Tire Specification	11.00-20,12.00-20,11.00R20,12.00R20
Axle Load(KG)	-/23400(three axles are installed in parataxis)
Anti-lock Braking System	NO
Vehicle Identification Number	LA99CG40XXXHTTXXX
Others	The effective volume is 33.3CBM; the loading medium density is 900KG/CBM, and the medium name is glycol. The external dimension of tank body: (LxWxL) 10500x2400x1660MM. Double-shaft truck-tractor is optional.
